	Dodge Charger Interface Module - EVM-DCIM3
	Dodge Charger Interface Module (Economy) - EVM-DCIM3-E

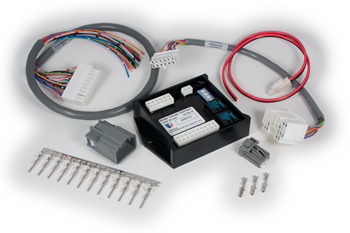

Dodge Charger Interface Module - EVM-DCIM3


Brochure	Installation Manual	Supplemental

The EVM-DCIM3 is a true cost effective “Plug n’ play” interface, accessing the vehicle’s onboard computer (PTIM). Wiring configurations of the EVM-DCIM3 follows traditional industry wiring practices of police related electronic equipment.

Installation time, wiring and materials are significantly reduced, translating into cost savings in the outfitting process while utilizing key circuits of the vehicle’s functions completely.

True park kill and convenient horn ring connections for either positive or negative switching sirens are now possible for the first time. Two police radio sense inputs automatically mutes factory am/fm radio for hands free operation.

A 3-pin radio rebroadcast connector and 12-pin cabin power leads / grill wiring connector kit with wiring guides are included with each module, everything required for a successful upfit.

Key Features:
	Fully functional and self contained, easily installs to existing onboard PTIM harness
	Small footprint - 3” x 3”
	3 Programmable features
	Circuit overload protection
	Installer friendly, no splicing, resistors or relays. -Eliminate guesswork.
	12-pin auxiliary connector kit included
	Potted compound construction seals against vibration and moisture
	Designed for 2008 & 2009 Dodge Charger & Magnum equipped with police package option

Standard Functions:
	Headlight flash with park kill option	Dimmer
	Tail light flash	Vehicle speed sense
	Multi-function park kill	Brake sense
	Horn & Horn ring ( + or - sense )	Dual am/fm radio audio mute inputs
	Headlamp sense

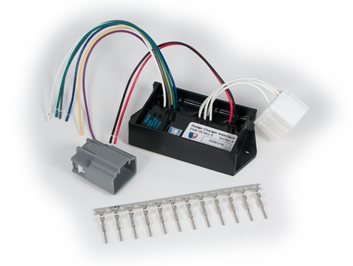

Dodge Charger Interface Module (Economy) - EVM-DCIM3-E

The EVM-DCIM3-E is an economy Dodge Charger interface module with 4 core features for basic vehicle upfit requirements.

“Plug n’ play” installation provides direct interface while user connections follows traditional industry wiring practices of connecting to police related electronic equipment.

True park kill and convenient horn ring connections for either positive or negative switching sirens are the same features found with the original, full version, EVM-DCIM3.

Installation time, wiring and materials are drastically reduced which translate into cost savings in the outfitting process while utilizing full use of the vehicle’s primary functions.

A 12-pin cabin power leads / grill wiring connector kit with wiring guides is included with each module, everything required for a successful upfit.


Brochure	Installation Manual	Supplemental

Key Features:
	Fully functional & self contained. Easily installs to existing onboard PTIM harness
	Small footprint - 2 ” x 3”
	2 Programmable features
	Circuit overload protection
	Installer friendly, no splicing, resistors or relays- Eliminates guesswork
	12-pin power/accessory connector kit included
	Potted compound construction seals against vibration and moisture
	Designed for 2008 & 2009 Dodge Charger and Magnum equipped with police package option

Standard Functions:
	Headlight flash with cut-off option
	Tail light flash
	Park kill output
	Horn & Horn ring ( + or – sense )
